Look, the whole point of a DALI (Digital Addressable Lighting Interface) system is to give you *control*. Real, serious control over your lighting. Think about it: dimming lights precisely, setting scenes, and even monitoring the whole system for problems. No more just flicking a switch and hoping for the best. This is about getting *specific* with your illumination. And that all starts with understanding how to hook everything up right. So, pay attention, and let's dive in.
DALI LED Driver Wiring Diagram Breakdown - Let's Get Technical (But Not Too Technical)

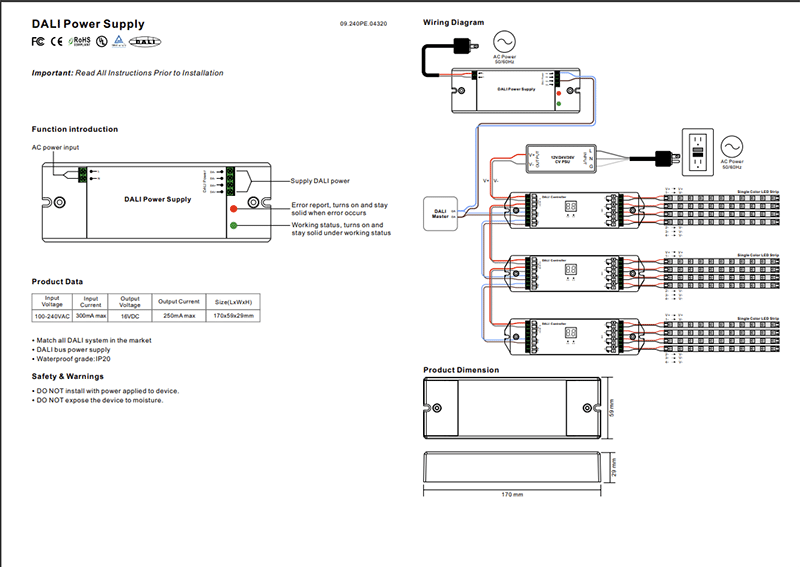

Alright, so peep this diagram. What you seein' here is a typical setup for a DALI LED driver. Now, don't get intimidated by all the lines and symbols. The main thing to remember is that DALI uses a *two-wire* communication bus. That's usually those "DA+" and "DA-" terminals you see. This bus carries both the power and the data that tells the driver what to do. Think of it like a tiny little highway for electrical commands.
Notice how the DALI bus is separate from the main power supply to the LED driver. You'll usually have your regular AC power coming in (the "L" and "N" – live and neutral) and then the DALI bus connecting to the controller or other DALI devices. Also, pay attention to the polarity of the DALI bus. Getting the DA+ and DA- wires swapped can cause problems, so double-check everything before you power it on.
Another important piece is the LED output side. This is where the driver connects to the actual LEDs. Make sure you're matching the voltage and current requirements of your LEDs to the driver's specifications. You don't want to fry your LEDs by giving them too much juice!
Finally, keep in mind that DALI systems often use a *bus power supply*. This is a separate power supply that provides power to the DALI bus itself. This is especially important for larger systems with many DALI devices. Without enough power on the bus, your devices won't be able to communicate properly.
Detailed Wiring Diagram for Dali Lighting Control System - Now We're Talkin' System-Wide
Now this diagram shows a more complete DALI lighting control system. We're talkin' multiple drivers, controllers, and maybe even sensors all networked together. This is where the real power of DALI comes into play. You can create complex lighting schemes, dim multiple lights simultaneously, and even automate the whole process based on time of day or occupancy.
Looking at this, you can see how the DALI bus connects all the devices together. Each device has a unique address, which allows the controller to send commands to specific drivers or groups of drivers. This is what allows you to control individual lights or entire zones of lighting. Also, notice the presence of control devices, could be touch screen, panels, or computer for configurations and commands. Some systems have emergency lighting control features that activate on power failure. The power outage causes all lights to go into defined failsafe mode, which provides basic lighting needs.
When you're wiring up a system like this, it's crucial to follow the manufacturer's instructions carefully. There may be limitations on the number of devices you can connect to a single DALI bus, or specific wiring requirements for certain devices. It's also a good idea to use a DALI commissioning tool to properly address and configure all the devices in the system. This tool helps you identify all the devices connected to the bus, assign them unique addresses, and configure their parameters.
So there you have it, fam. A breakdown of DALI LED driver wiring diagrams. It might seem complicated at first, but with a little patience and attention to detail, you can master this technology and create some seriously dope lighting systems. Don't be afraid to ask questions, consult the documentation, and take your time. You got this!
